AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2

AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2

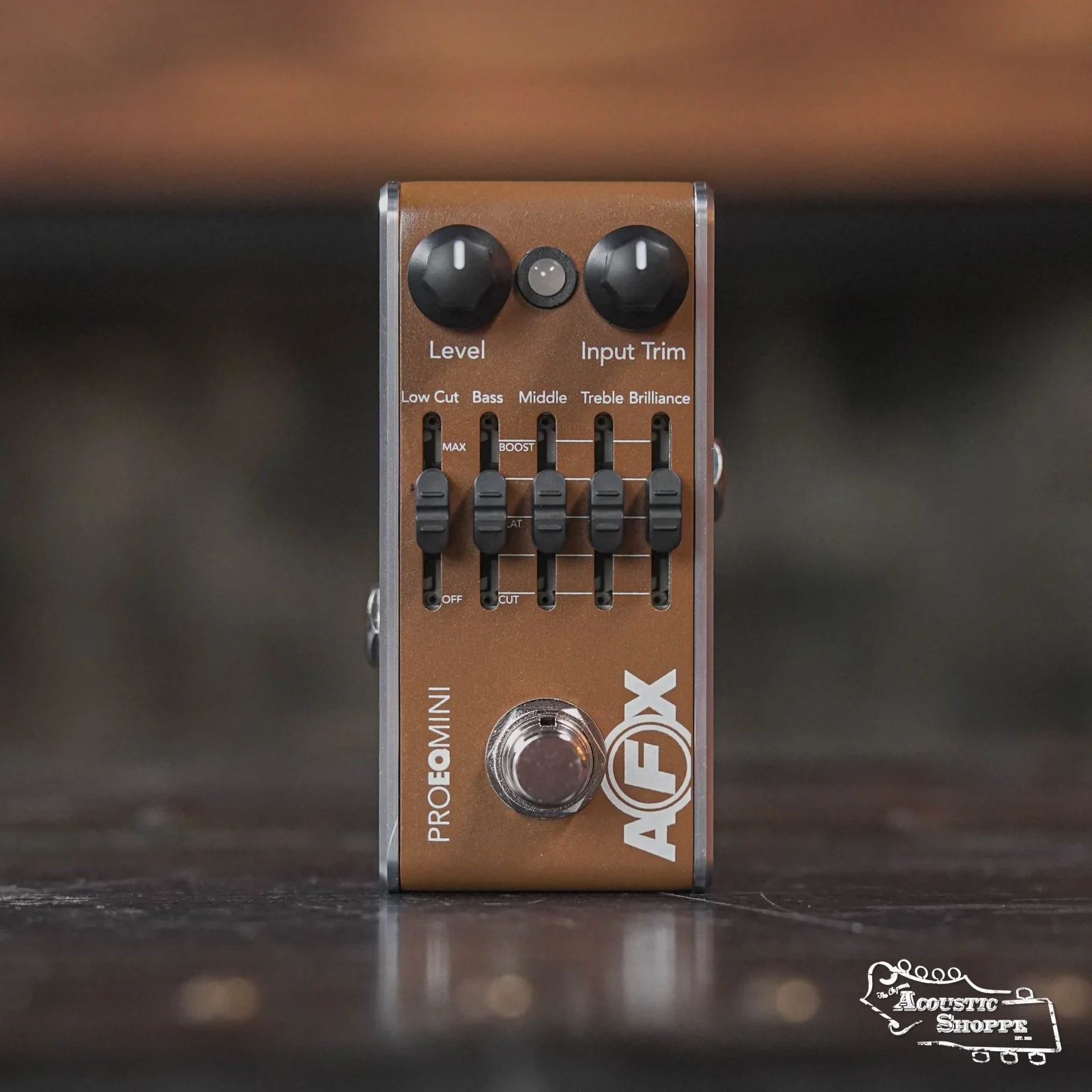

AFX PRO EQ MINI ACOUSTIC PREAMP & EQ ACOUSTIC GUITAR PEDAL

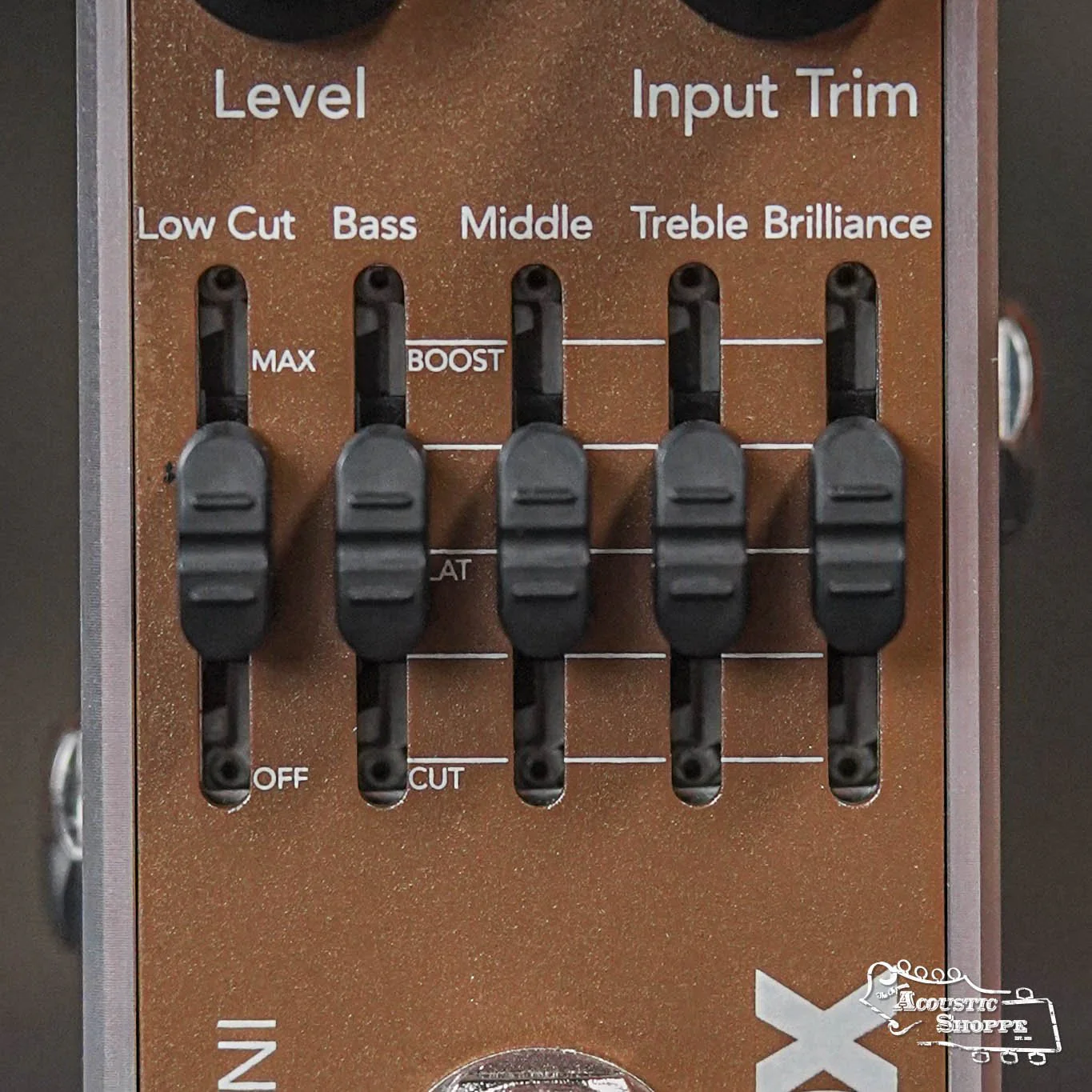

  • 5-Band EQ Specially Voiced for Acoustic Instruments

  • True Bypass with Options for Buffered Bypass or Mute

  • Feedback-Fighting Phase Control

  • Innovative Dual Path Routing

  • Super Compact Design Fits Almost Anywhere

  • 9V External Power Required (sold separately)


SPECS
AUDIO I/O: 1/4" TRS input and output (TRS enables Dual Path Functionality)
DSP: 32-bit processing
BYPASS: True Bypass with Buffered Bypass Option
DIMENSIONS: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
MATERIAL: Durable aluminum enclosure
CURRENT DRAW: 53mA, typical
POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
ANALOG SIGNAL PATH: Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
DIGITAL SIGNAL PATH: A/D, D/A conversion: 24-bit | Signal processing: 32-bit
$38.98

Original: $129.95

-70%
AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2—

$129.95

$38.98

Product Information

Shipping & Returns

Description

AFX PRO EQ MINI ACOUSTIC PREAMP & EQ ACOUSTIC GUITAR PEDAL

  • 5-Band EQ Specially Voiced for Acoustic Instruments

  • True Bypass with Options for Buffered Bypass or Mute

  • Feedback-Fighting Phase Control

  • Innovative Dual Path Routing

  • Super Compact Design Fits Almost Anywhere

  • 9V External Power Required (sold separately)


SPECS
AUDIO I/O: 1/4" TRS input and output (TRS enables Dual Path Functionality)
DSP: 32-bit processing
BYPASS: True Bypass with Buffered Bypass Option
DIMENSIONS: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
MATERIAL: Durable aluminum enclosure
CURRENT DRAW: 53mA, typical
POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
ANALOG SIGNAL PATH: Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
DIGITAL SIGNAL PATH: A/D, D/A conversion: 24-bit | Signal processing: 32-bit
